Santa Fe Compact70 Dehumidifier
$1,415.00
-
Small in stature, big on performance the Santa Fe dehumidifier is a powerful yet space-saving unit that we use on all our jobs.
- Description
- Specifications
- Ideal Applications
- Additional Information
- Product Video
- Product Downloads

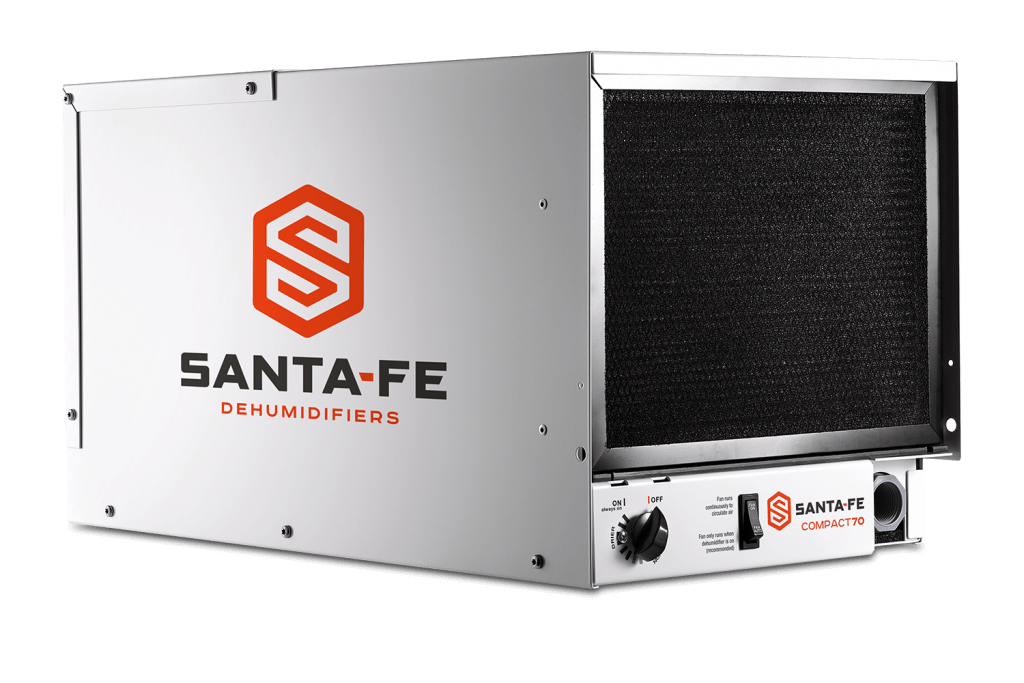

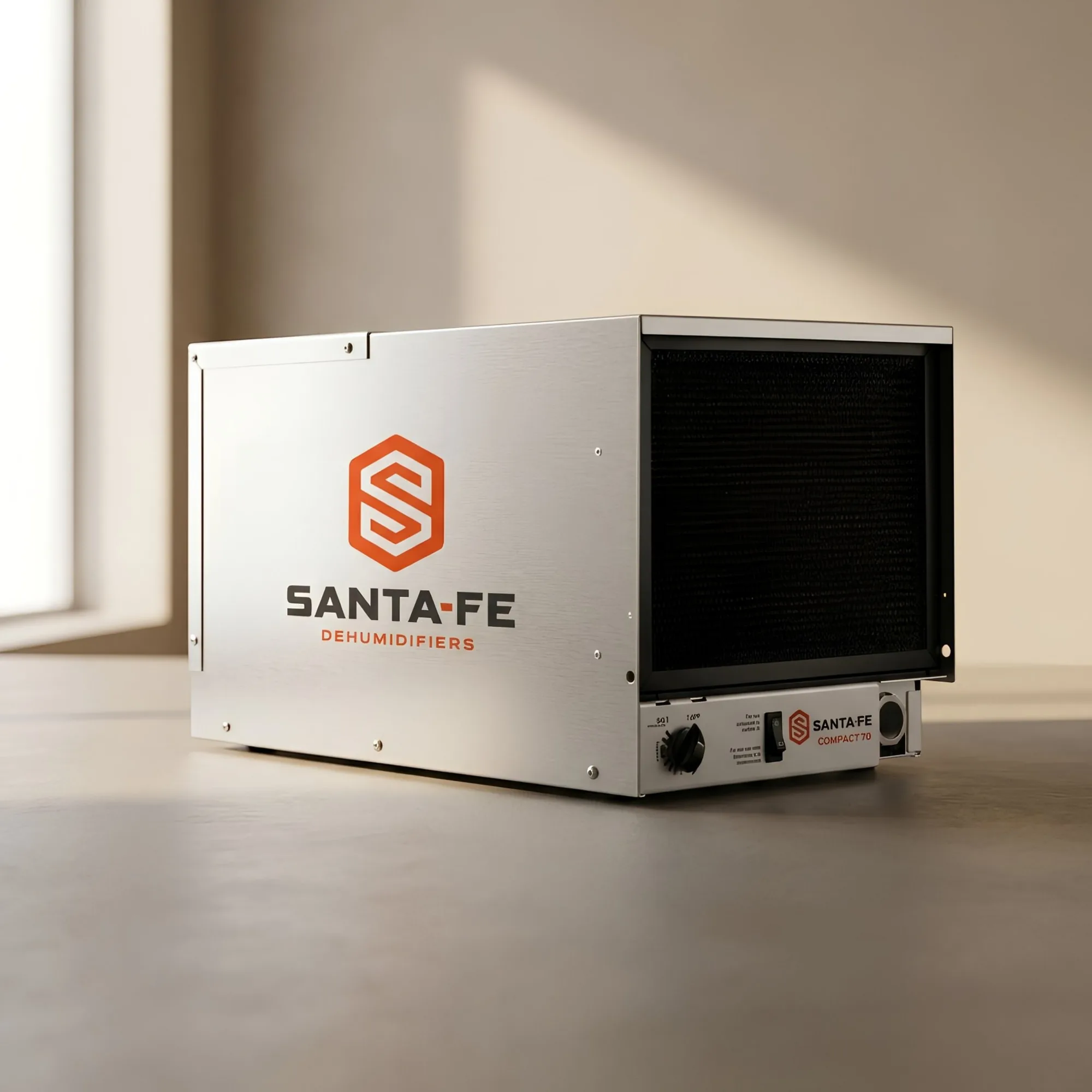

The Santa Fe Compact70 Dehumidifier is a powerful yet space-saving unit.
With a horizontal configuration and a flow-through design, this system removes excess moisture from low-clearance crawl spaces and tight basement areas to a small home theater.
Water Removal
70 Pints/Day
8.75 Gallons/Day
For Crawl Spaces Up to:
1,800-2,600 Square Feet
For Basements Up to:
1,800-2,200 Square Feet
Unmatched 6 Year Warranty
Specifications
Part Number : 4033600
Pint Capacity : 70 Pints or 8.75 Gallons
Power : 580 watts @ 80°F and 60% RH
Supply Voltage ; 115 volt – 1 phase – 60 Hz
Current Draw : 5.1 amps
Blower : 150 CFM @ 0.0″ WG
Average Sound Level : 55 dBA
Operating Temperature : 49°F Min., 95°F Max.
Crawl Space Sizing :
Very Tightly Sealed Up to 2,600 Sq. Ft. (15,000 Cu. Ft.)
Moderately Sealed Up to 2,200 Sq. Ft. (11,000 Cu. Ft.)
Some Leaks & Imperfections Up to 1,800 Sq. Ft. (9,000 Cu. Ft.)
Basement Sizing:
Very Tightly Sealed Up to 2,600 Sq. Ft. (23,000 Cu. Ft.)
Moderately Sealed Up to 2,000 Sq. Ft. (20,000 Cu. Ft.)
Some Leaks & Imperfections Up to 1,800 Sq. Ft. (18,000 Cu. Ft.)
Minimum Performance at: 80°F and 60% RH
Water Removal :
70 Pints/Day
5.0 Pints/kWh
2.4 L/kWh
Efficiency
Energy Factor
Minimum Performance at : 1.9 L/kWh
Water Removal
Efficiency
Energy Factor :
70°F and 60% RH
47 Pints/Day
3.9 Pints/kWh
Air Filter : MERV-13, Standard Filter Size 9″W x 11″H x 1″D
Unit Dimensions : 12″W x 12″H x 21″D
Unit Weight : 55 Lbs.
Shipping Weight : 64 Lbs.
Ideal Applications
- Basements
- Crawl spaces
- Garages
- Home theaters
- Workshops
- Gun rooms
- Exercise rooms
- Commercial
Additional Information
Efficient Water Removal
Removes up to 70 pints of water a day.
Small Footprint
(12″W x 12″H x 21″D) fits low crawl spaces, basements, mechanical closets or other small spaces.

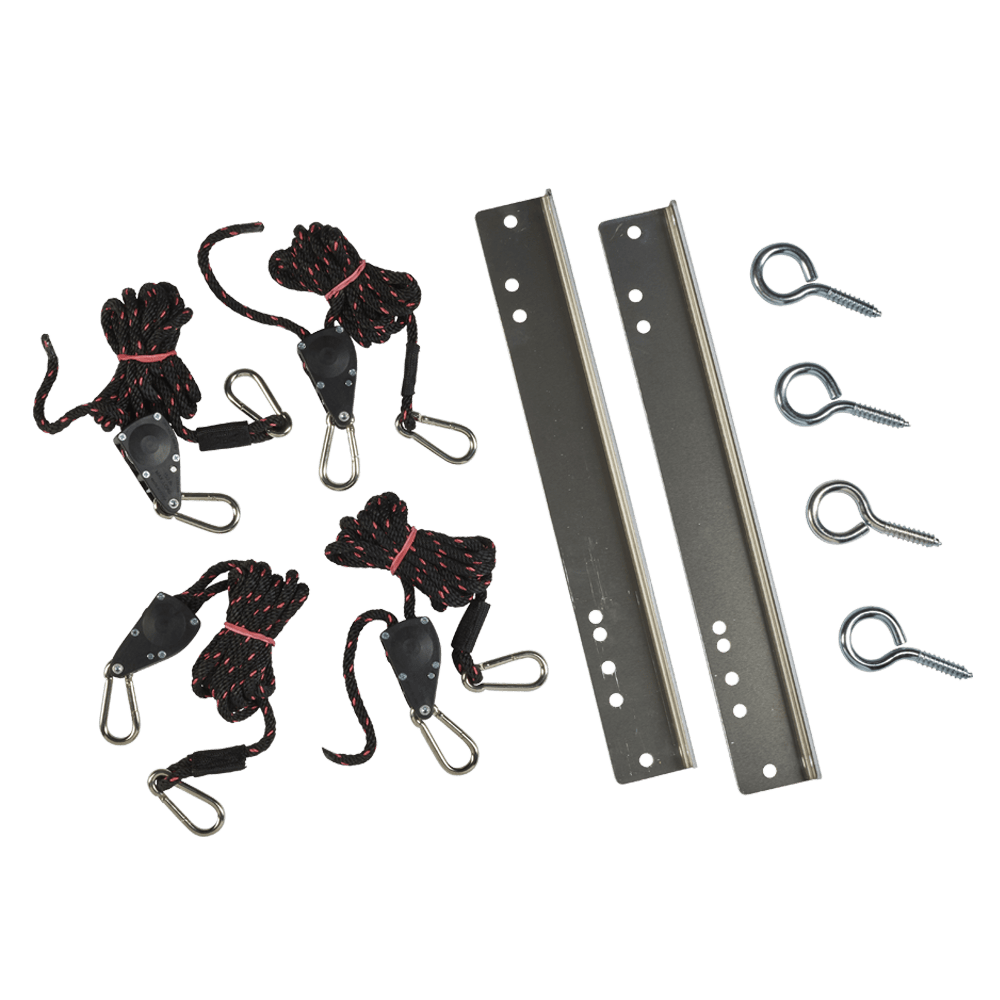

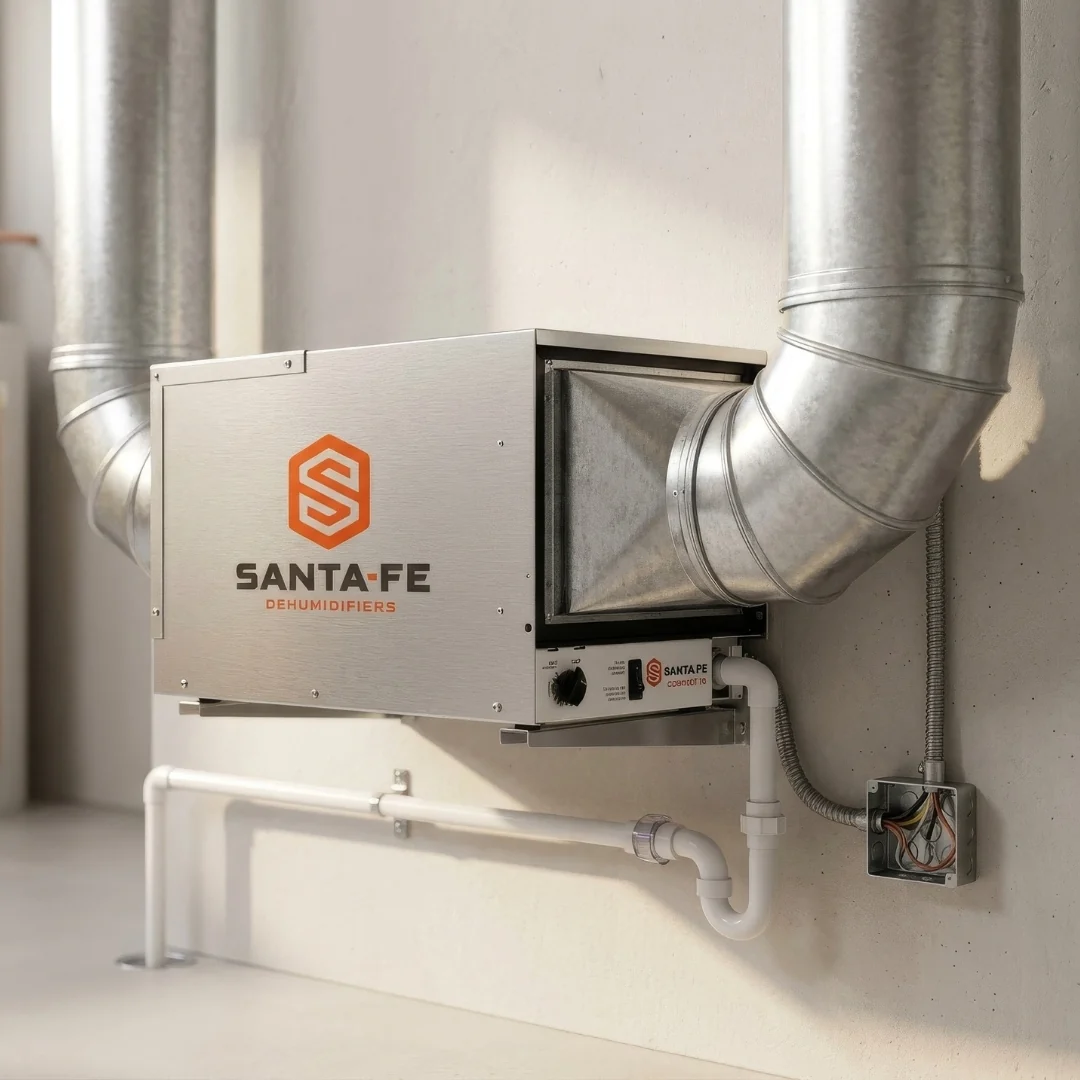

Convenient Sizing
to fit between floor joists for convenient hanging installation.
Rotatable Exhaust Outlet
Provides for horizontal or vertical discharge.
Energy Efficient
Every Santa Fe dehumidifier exceeds Department of Energy standards.
Merv-13 Filter
Provides superior air filtration.
Low Heat Load
Engineered for low-temperature operation and proper airflow.
Ducting Options
Ducting options for divided spaces.
Auto Restart
Allows the dehumidifier to automatically restart after a power outage.
